High Purity Stainless Steel 304 PSA Nitrogen Generator With CE Approved

High Purity Stainless Steel 304 PSA Nitrogen Generator With CE Approved

  • High Purity Stainless Steel 304 PSA Nitrogen Generator With CE Approved
High Purity Stainless Steel 304 PSA Nitrogen Generator With CE Approved
পণ্যের বিবরণ:
Place of Origin: Suzhou,China
পরিচিতিমুলক নাম: SINCE-GAS
সাক্ষ্যদান: CE,ABS,CCS,BV,DNV,ASME,GOST,
Model Number: PN-30-49
প্রদান:
Minimum Order Quantity: 1 set
মূল্য: Negotiate
Packaging Details: Standard exporting package
Delivery Time: 2 months after received down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per year
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
প্রবাহ হার: 30 Nm3/ঘণ্টা বিশুদ্ধতা: 99.99%
শিশির বিন্দু: -40 ℃ উপাদান: স্টেইনলেস স্টিল 304
সনদপত্র: সিই, বিভি, সিসিএস, এবিএস, এলআর, ডিএনভি আবেদন: রাসায়নিক, খাদ্য, চিকিৎসা ক্ষেত্র
বৈশিষ্ট্য: উচ্চ বিশুদ্ধতা, ভাল মানের
লক্ষণীয় করা:

এসএ নাইট্রোজেন প্ল্যান্ট

,

পিএসএ নাইট্রোজেন গ্যাস জেনারেটর

,

পিএসএ নাইট্রোজেন জেনারেটর সিই অনুমোদিত

High purity CE approved stainless steel 304 material nitrogen generator

Description:
(1) Nitrogen Generator
1.1) High purity
1.2) Excellent energy-saving
1.3) Smoothly running,long-life
1.4) Automatic operating
1.5) Certificate:ISO9001:2008

Principle:
N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2. When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve, the N2 gas is absorbed and O2 is obtained by separation.

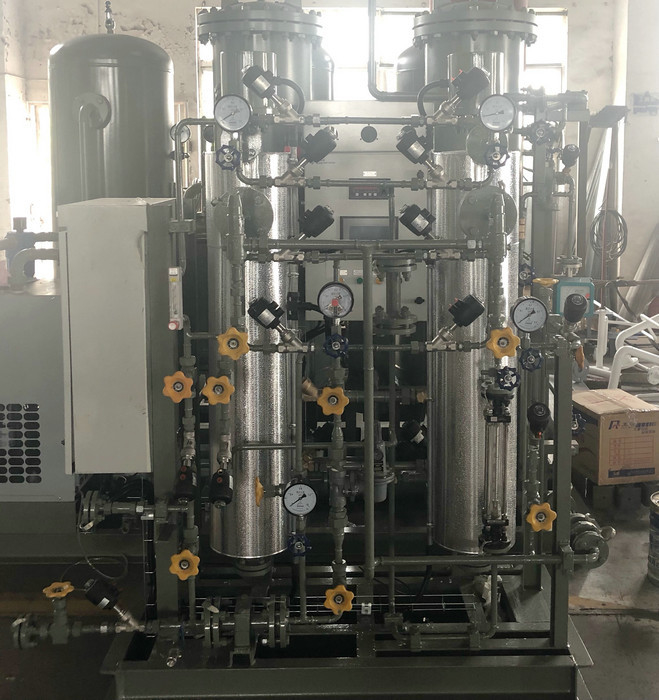

The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal . When one tower produces N2, another tower release the N2 by reducing the pressure to get the renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to output N2 continuously.


Specifications:


No Model Capacity(Nm3/h) Purity Power(KW) Overall size(mm)

1
2
3
4

PN-3-39
PN-5-29
PN-5-295
PN-8-295

3
5
5
8

99.9%
99.5%
99%
95%



0.5



1800*1400*1500

5
6
7
8

PN-5-49
PN-8-39
PN-12-295
PN-15-29

5
8
12
15

99.99%
99.9%
99.5%
99%



0.5



1800*1400*1800

9
10
11
12

PN-10-49
PN-15-39
PN-25-295
PN-30-39

10
15
25
30

99.99%
99.9%
99.5%
99%



0.5



2000*1700*2250

13
14
15
16

PN-15-49
PN-22-39
PN-35-295
PN-45-29

15
22
35
45

99.99%
99.9%
99.5%
99%

0.5 2100*1800*2200

17
18
19
20

PN-20-49
PN-30-39
PN-50-295
PN-60-29

20
30
50
60

99.99%
99.9%
99.5%
99%

0.5 2200*1800*2200

21
22
23
24

PN-30-49
PN-45-39
PN-75-295
PN-88-29

30
45
75
88

99.99%
99.9%
99.5%
99%

0.5 2400*1900*2200

25
26
27
28

PN-40-49
PN-60-39
PN-100-295
PN-120-29

40
60
100
120

99.99%
99.9%
99.5%
99%

0.5 2500*2100*2500

29
30
31
32

PN-50-49
PN-70-39
PN-120-295
PN-140-29

50
70
120
140

99.99%
99.9%
99.5%
99%



0.5



2600*2200*2850

33
34
35
36

PN-60-49
PN-90-39
PN-160-295
PN-190-29

60
90
160
190

99.99%
99.9%
99.5%
99%



0.5



2800*2200*2500

37 PN-80-49 80 99.99% 0.5

38
39
40

PN-120-39
PN-200-295
PN-250-29

120
200
250

99.9%
99.5%
99%


0.5


3200*1400*2800

41
42
43
44

PN-100-49
PN-140-39
PN-250-295
PN-290-29

100
140
250
290

99.99%
99.9%
99.5%
99%



0.5



3500*1500*2800

... ... ... ... ... ...
Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly


Figures of nitrogen generator :

Resource: Air
Pressure:5-10 bar
Pressure dew point:≤10degree
Oil content ≤0.003mg/m3
Air -change with the Nitrogen& Oxygen

Product nitrogen
Pressure:≤9bar
Normal pressure dew point:≤-40degree
Purity:95%-99.9995%
Nitrogen capacity :5-5000Nm3/H


Application:

  Chemical Manufacturing
. Lase Cutting
. Tire Filling
. Pharmaceutical
. Marine
. Electronics
. Food Processing & Packaging
. Plastic
. Heat Treatment
. Others

During the last 10 years,about 98% old customers firmly choose SINCE

Why they always choose SINCE?

Many years of experience and expertise in manufacturing and supplying gas plants;
,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the
seldom company who got ,TS (Manufacture License of special equipment) CCS(CHINA
CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen generator.
Excellent infrastructure set up teamed by experienced and qualified engineers.
Sophisticated and developed R&D wing in assistance for installation and use of plants.
