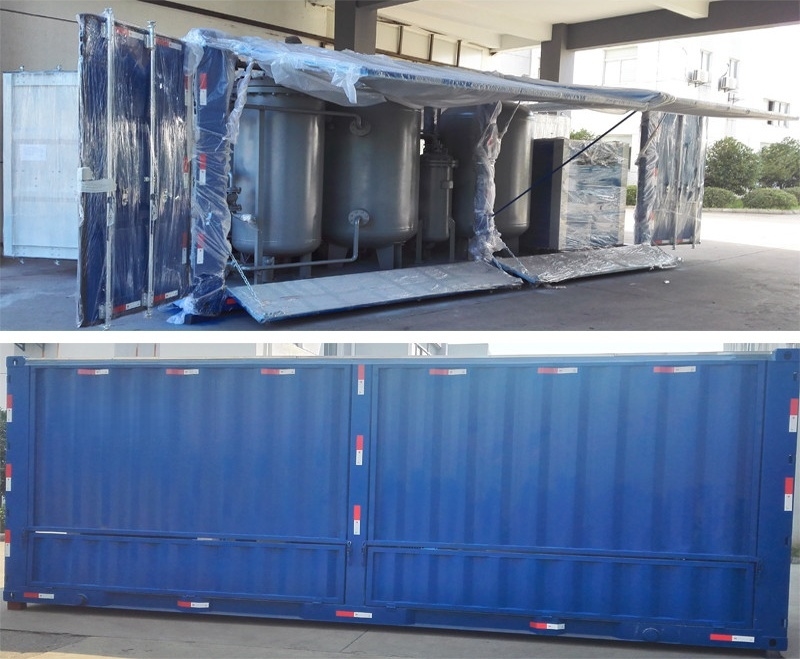

Container Type PSA Nitrogen Generator For Marine Industry and Oil Tanker

Container Type PSA Nitrogen Generator For Marine Industry and Oil Tanker

    • Container Type PSA Nitrogen Generator For Marine Industry and Oil Tanker
  • Container Type PSA Nitrogen Generator For Marine Industry and Oil Tanker

    পণ্যের বিবরণ:

    Place of Origin: Suzhou, China
    পরিচিতিমুলক নাম: SINCE
    সাক্ষ্যদান: CE,ABS,CCS,BV,DNV,ASME,GOST,
    Model Number: PN

    প্রদান:

    Minimum Order Quantity: 1 set
    মূল্য: Negotiate
    Packaging Details: Exported wooden case
    Delivery Time: 2 months after received down payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 1000 sets /per year
    যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Material: Carbon steel/Stainless steel Certificates: BV,,CCS,ISO,TS
    Capaicty: 5-5000 Nm3/h Purity: 95%-99.9995%
    Dew point: -40 ℃ Operate power: 1 KW
    Application: Used for Oil tanker, Chemical tanker Marine industry
    লক্ষণীয় করা:

    sa nitrogen plant

    ,

    psa nitrogen gas generator



    Container Type PSA Nitrogen Generator For Marine Industry and Oil Tanker





    Description:



    NO

    Item

    Notes

    1

    Nitrogen

    High purity 99.9995%

    2

    Energy

    Excellent energy-saving

    3

    Working life

    >20 years

    4

    Operating method

    Fully automatic

    5

    Certificates

    CE,TUV,,CCS approved



    Introduction:



    N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than

    the quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.

    When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,

    the N2 gas is absorbed and O2 is obtained by separation.



    The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get

    into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .

    When one tower produces N2, another tower release the N2 by reducing the pressure to get the

    renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration

    to output N2 continuously.



    Benefits of our PSA Nitrogen Generators:



    ·  Experience - We have supplied over 1000 Nitrogen Generators all over the world.

    ·  German Technology - We have German collaboration for our technology and have fine tuned this

    technology to gain proprietary advantages in several key areas.

    ·  Automated Operation - PSA Nitrogen Gas plants we manufacture incorporate complete automation

    and no personnel are required for operating the Gas plant.

    ·  Low Power Consumption - We guarantee a very low power consumption for Nitrogen production by

    optimum design to efficiently use the compressed air and maximize production of Nitrogen gas.



    Specifications:



    No

    Model

    Capacity(Nm3/h)

    Purity

    Power(KW)

    Overall size(mm)

    1

    2

    3

    4

    PN-3-39

    PN-5-29

    PN-5-295

    PN-8-295

    3

    5

    5

    8

    99.9%

    99.5%

    99%

    95%





    0.5





    1800*1400*1500

    5

    6

    7

    8

    PN-5-49

    PN-8-39

    PN-12-295

    PN-15-29

    5

    8

    12

    15

    99.99%

    99.9%

    99.5%

    99%





    0.5





    1800*1400*1800

    9

    10

    11

    12

    PN-10-49

    PN-15-39

    PN-25-295

    PN-30-39

    10

    15

    25

    30

    99.99%

    99.9%

    99.5%

    99%





    0.5





    2000*1700*2250

    13

    14

    15

    16

    PN-15-49

    PN-22-39

    PN-35-295

    PN-45-29

    15

    22

    35

    45

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2100*1800*2200

    17

    18

    19

    20

    PN-20-49

    PN-30-39

    PN-50-295

    PN-60-29

    20

    30

    50

    60

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2200*1800*2200

    21

    22

    23

    24

    PN-30-49

    PN-45-39

    PN-75-295

    PN-88-29

    30

    45

    75

    88

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2400*1900*2200

    25

    26

    27

    28

    PN-40-49

    PN-60-39

    PN-100-295

    PN-120-29

    40

    60

    100

    120

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2500*2100*2500

    29

    30

    31

    32

    PN-50-49

    PN-70-39

    PN-120-295

    PN-140-29

    50

    70

    120

    140

    99.99%

    99.9%

    99.5%

    99%





    0.5





    2600*2200*2850

    33

    34

    35

    36

    PN-60-49

    PN-90-39

    PN-160-295

    PN-190-29

    60

    90

    160

    190

    99.99%

    99.9%

    99.5%

    99%





    0.5





    2800*2200*2500

    37

    PN-80-49

    80

    99.99%

    0.5



    38

    39

    40

    PN-120-39

    PN-200-295

    PN-250-29

    120

    200

    250

    99.9%

    99.5%

    99%



    0.5



    3200*1400*2800

    41

    42

    43

    44

    PN-100-49

    PN-140-39

    PN-250-295

    PN-290-29

    100

    140

    250

    290

    99.99%

    99.9%

    99.5%

    99%





    0.5





    3500*1500*2800

    ...

    ...

    ...

    ...

    ...

    ...

    Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly



    Technical Features:
    Low energy consumption,less cost,strong adaptability,rapid nitrogen production and adjustable

    purity.Perfect technique process design and  optimal using effect.
    Modular structure design and saving of floor space.
    Convenient operation,stable performance, high automation and unattended operation.
    Reasonable inner structure,uniform  distribution of airflow,reducing of high-speed impacts of the airflow .
    Unique protection measure for carbon molecular sieve extends service life of the carbon molecular sieve.
    Key parts adopt the famous brand,which is the effective guarantee of the equipment quality.
    Automatic venting device with national patented  technology ensures quality of produced nitrogen.
    It has functions of diagnosis,alarming and automatic  troubleshooting for several failures.
    Touch-screen display,dew point detection,energy-saving control ,DCS communication,etc.are optional.



    Application:



     Oil tanker ship

     Chemical tanker ship

     LNG ship

     Oil&Gas project



    Container Type PSA Nitrogen Generator For Marine Industry and Oil Tanker 0



    During the last 10 years,about 98% old customers firmly choose SINCE



    Why they always choose SINCE?

    Many years of experience and expertise in manufacturing and supplying gas plants;

    ,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom

    company who got ,TS (Manufacture License of special equipment)

    CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen

    generator.

    Excellent infrastructure set up teamed by experienced and qualified engineers.

    Sophisticated and developed R&D wing in assistance for installation and use of plants.
