Durable Long Life Membrane Nitrogen Generator Nitrogen Gas Generation

Durable Long Life Membrane Nitrogen Generator Nitrogen Gas Generation

    • Durable Long Life Membrane Nitrogen Generator Nitrogen Gas Generation
  • Durable Long Life Membrane Nitrogen Generator Nitrogen Gas Generation

    পণ্যের বিবরণ:

    Place of Origin: Suzhou,China
    পরিচিতিমুলক নাম: PN
    সাক্ষ্যদান: CE,ABS,CCS,BV,DNV,ASME,GOST,
    Model Number: SINCE-GAS

    প্রদান:

    Minimum Order Quantity: 1 set
    মূল্য: Negotiate
    Packaging Details: Normal exported wooden case
    Delivery Time: 2 months after received down payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 1000 sets/year
    যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Capacity: 5-5000 Nm3/h Purity: 95%-99.99%
    Operate pressure: 0.1-0.8 Mpa Dew point: -40 ℃
    Condition: New State: Fully automatic
    লক্ষণীয় করা:

    Nitrogen Membrane Generators

    ,

    Nitrogen Membrane Unit



    Durable Long Life Membrane Nitrogen Generator Nitrogen Gas Generation





    Description:

    (1) Nitrogen Generator
    1.1) High purity
    1.2) Excellent energy-saving
    1.3) Smoothly running,long-life
    1.4) Automatic operating
    1.5) Certificate:ISO9001:2008



    Air is composed of 78% Nitrogen and 21% Oxygen. PSA Nitrogen generation technology works on the

    principle of air separation by adsorbing Oxygen and separating Nitrogen.

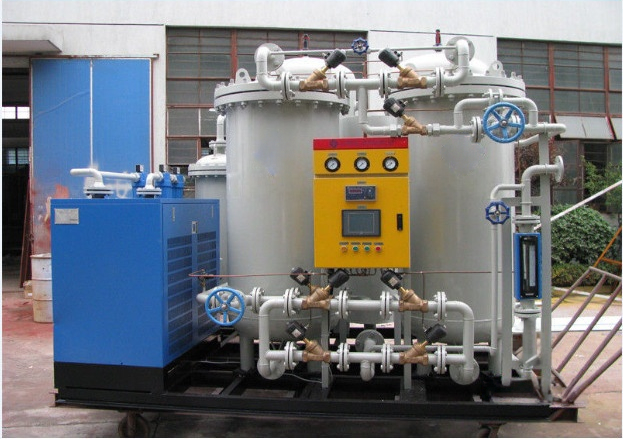

    Pressure Swing Adsorption (PSA Nitrogen) process comprises of 2 vessels filled with Carbon Molecular Sieves

     (CMS). (see image below for detail of vessels).

    N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the

    quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.

    When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve,

    the N2 gas is absorbed and O2 is obtained by separation.



    The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get

    into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal .

    When one tower produces N2, another tower release the N2 by reducing the pressure to get the

    renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to

    output N2 continuously.

    Durable Long Life Membrane Nitrogen Generator Nitrogen Gas Generation 0

    Specifications:

    No

    Model

    Capacity(Nm3/h)

    Purity

    Power(KW)

    Overall size(mm)

    1

    2

    3

    4

    PN-3-39

    PN-5-29

    PN-5-295

    PN-8-295

    3

    5

    5

    8

    99.9%

    99.5%

    99%

    95%





    0.5





    1800*1400*1500

    5

    6

    7

    8

    PN-5-49

    PN-8-39

    PN-12-295

    PN-15-29

    5

    8

    12

    15

    99.99%

    99.9%

    99.5%

    99%





    0.5





    1800*1400*1800

    9

    10

    11

    12

    PN-10-49

    PN-15-39

    PN-25-295

    PN-30-39

    10

    15

    25

    30

    99.99%

    99.9%

    99.5%

    99%





    0.5





    2000*1700*2250

    13

    14

    15

    16

    PN-15-49

    PN-22-39

    PN-35-295

    PN-45-29

    15

    22

    35

    45

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2100*1800*2200

    17

    18

    19

    20

    PN-20-49

    PN-30-39

    PN-50-295

    PN-60-29

    20

    30

    50

    60

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2200*1800*2200

    21

    22

    23

    24

    PN-30-49

    PN-45-39

    PN-75-295

    PN-88-29

    30

    45

    75

    88

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2400*1900*2200

    25

    26

    27

    28

    PN-40-49

    PN-60-39

    PN-100-295

    PN-120-29

    40

    60

    100

    120

    99.99%

    99.9%

    99.5%

    99%

    0.5

    2500*2100*2500

    29

    30

    31

    32

    PN-50-49

    PN-70-39

    PN-120-295

    PN-140-29

    50

    70

    120

    140

    99.99%

    99.9%

    99.5%

    99%





    0.5





    2600*2200*2850

    33

    34

    35

    36

    PN-60-49

    PN-90-39

    PN-160-295

    PN-190-29

    60

    90

    160

    190

    99.99%

    99.9%

    99.5%

    99%





    0.5





    2800*2200*2500

    37

    PN-80-49

    80

    99.99%

    0.5



    38

    39

    40

    PN-120-39

    PN-200-295

    PN-250-29

    120

    200

    250

    99.9%

    99.5%

    99%



    0.5



    3200*1400*2800

    41

    42

    43

    44

    PN-100-49

    PN-140-39

    PN-250-295

    PN-290-29

    100

    140

    250

    290

    99.99%

    99.9%

    99.5%

    99%





    0.5





    3500*1500*2800

    ...

    ...

    ...

    ...

    ...

    ...

    Note:More news please free to contact Since Gas System Co.,Ltd or send email to us directly



    Technical characteristics:

    More reliable:
    * Standardized air separation systems based on proven state of the art technologies in history of many

    years application in fields.
    * Simplified engineering design idea with much less moving parts, guarantees maximum reliability and

    minimal maintenance
    More economical:
    * More advanced and more economical air separation modules.
    * REFLUX composition control system reduces air consumption capacity, saves energy cost.
    * Patented Energy Efficiency System (EES) enables our systems to produce product gases based on

    actual demand.
    More convenient:
    * Diversification monitoring and control system enables parameters of capacity, purity, and pressure of

    product gases online display on panel screen, gives running problem alarm, and reminds of maintenance.
    * Turn-key solution and pre-commissioned.
    * Skid mounted design, easy installation.



    Application:

    Oil tanker ship

    Chemical ship

    LNG ship

    Oil&Gas extraction

    Oil&Gas storage project



    During the last 10 years,about 98% old customers firmly choose SINCE

    Why they always choose SINCE?

    Many years of experience and expertise in manufacturing and supplying gas plants;

    ,CCS,TS certified company for quality gas plants and best after -sale services; SINCE is the seldom

     company who got ,TS (Manufacture License of special equipment)

    CCS(CHINA CLASSIFICATION SOCIETY) certificate,SINCE also can manufacture marine nitrogen

    generator.

    Excellent infrastructure set up teamed by experienced and qualified engineers.

    Sophisticated and developed R&D wing in assistance for installation and use of plants.
